Introduction

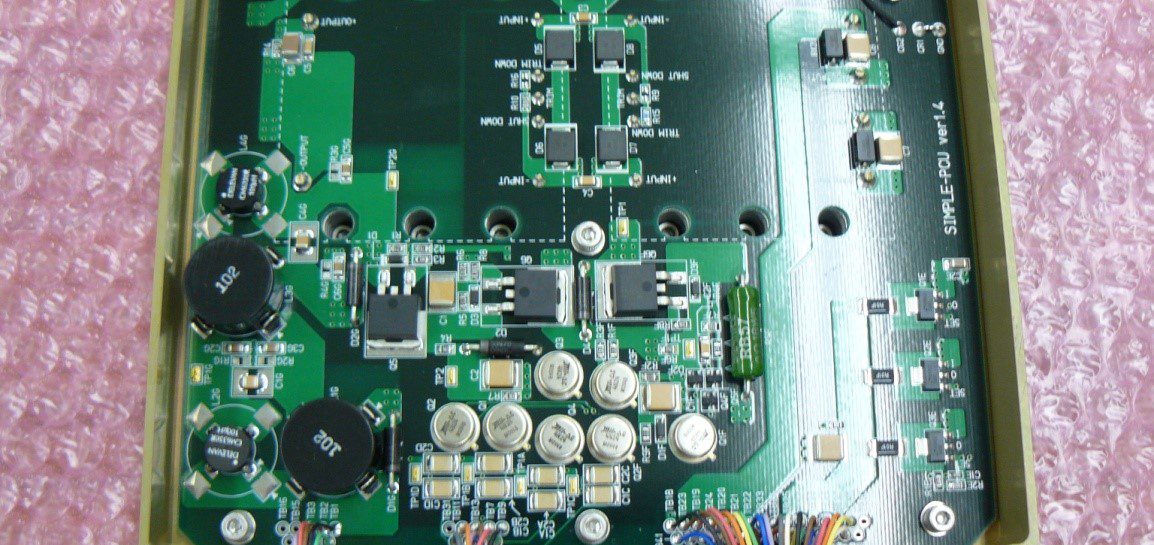

本機は,DC/DCコンバータを搭載した電力調整装置(PCU:Power Conditioning Unit)です.

DC/DCコンバータの1次側には,電源供給スイッチ,EMIフィルタおよび過電流制限機能が搭載され,2次側とは電気的に絶縁されています.

2次側発生電圧として,+30V,±15V,+12V,+5Vの4系統を生成します.

1次側の電源供給スイッチは外部からのパルス信号によって制御できます.また,1次側搭載の過電流制限機能によって,過電流検知後に電流制限が働き,その状態が一定期間持続した場合に自動的に電源供給が遮断されます(電流制限値および遮断時間はカスタマイズ可能).

搭載するDC/DCコンバータを変更することで,各種電力要求に対応可能です.



  • 入力1次電圧範囲: +18~+36V
  • 発生2次電圧(1): +30V (Max.60W)(Ripple:±100mVp-p)
  • 発生2次電圧(2): ±15V (Max.30W)(Ripple: ±100mVp-p)
  • 発生2次電圧(3): +12V (Max.36W)(Ripple: ±100mVp-p)
  • 発生2次電圧(4): +5V (Max.50W)(Ripple: ±100mVp-p)
  • EMIフィルタ: 搭載
  • 過電流制限機能: 搭載
  • 動作温度範囲: -55℃~+85℃
  • 耐振動環境: 20Grms, 20~2000Hz
  • 耐放射線環境 (TID): 10krad(試験値, 上限値は別途評価)
  • board size: 161mm x 139mm
  • board weight: 350 g

[:en]

Introduction

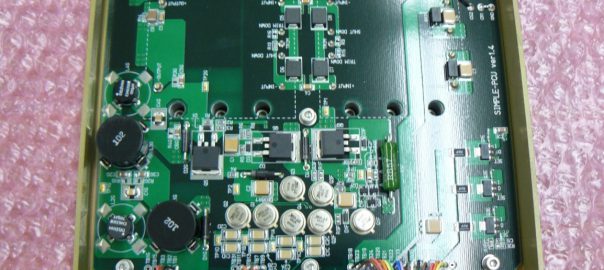

This unit is a power conditioning unit (PCU: Power Conditioning Unit) equipped with a DC / DC converter.

The primary side of the DC / DC converter is equipped with a power supply switch, EMI filter and overcurrent limiting function and is electrically isolated from the secondary side.

Four systems of + 30V, ± 15V, + 12V, and + 5V are generated as secondary side generated voltages.

The primary power supply switch can be controlled by an external pulse signal.

Also, due to the overcurrent limiting function on the primary side, the current limit is activated after the overcurrent is detected and the power supply is automatically shut down if the state continues for a certain period of time (current limit value and cutoff time can be customized ).

By changing the DC / DC converter to be mounted, it is possible to respond to various power demands.



  • Input Voltage : +18 to +36V
  • Output Voltage 1 : +30V (Max.60W) (Ripple:±100mVp-p)
  • Output Voltage 2 : ±15V (Max.30W) (Ripple: ±100mVp-p)
  • Output Voltage 3 : +12V (Max.36W) (Ripple: ±100mVp-p)
  • Output Voltage 4 : +5V (Max.50W) (Ripple: ±100mVp-p)
  • EMI filter : Yes
  • Over Current Protection : Yes
  • Temperature : -55℃ to +85℃
  • Vibration : 20 Grms, 20 to 2000 Hz
  • TID : 10 krad
  • Board size : 161 mm x 139 mm
  • Board weight : 350 g

[:]
